APPLICATIONS

CAAC-PMA Replacement for LIEBHERR

P/N: 841210-080

Eligibility: A318/A319/A320/A321/A320NEO/A321NEO

FEATURES

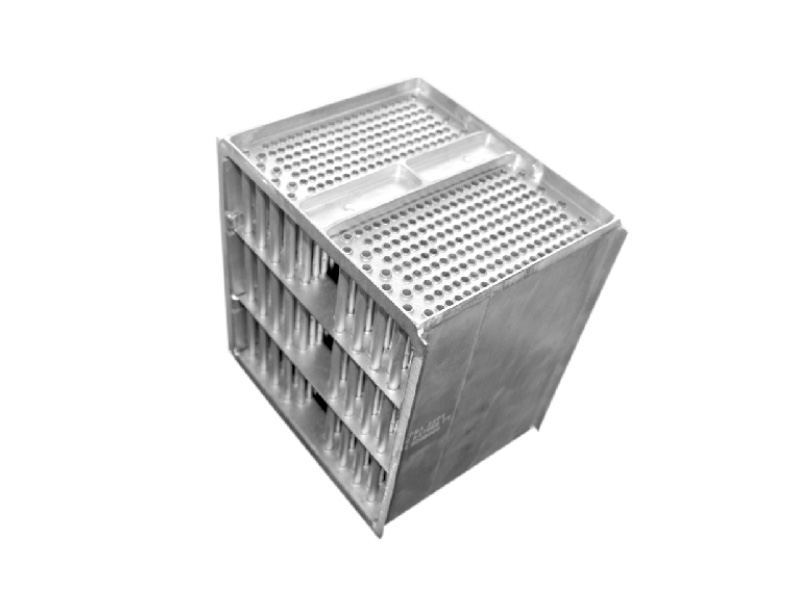

The core assembly is the core of the condenser 756A0000-Series and is a compactshape. The cross-flow exchanger uses a single pass principle type. Made up with aluminumparts, it consists of a network of tubes brazed to manifolds and plates. During operation, thehot bleed air passes in the tubes, the cooling air passes out of the tubes. There is no gaseousmixture between the two air systems. The core is used to condense and form the watercontained in the system in vapor form.
